Autoclave and sterilizer manufacturer, Delhi NCR

Autoclaves, sterilizers and infection control equipment

31 products across 8 families, each with sizes and specifications. Ask for a quote on any model, or tell us your load and we will recommend one.

7–45 L

Portable autoclaves

Seamless aluminium and stainless steel dressing sterilizers for clinics, dressing rooms and small labs. Every model comes electric or non-electric, with a pressure gauge, safety valve, steam and vacuum release valves, gasket and inner tripod.

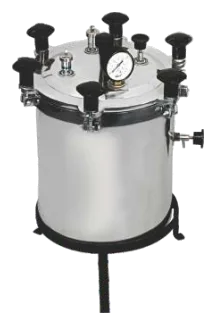

AECNOMED ASW-101 (AW) Portable aluminium autoclave, six wing-nut type
ASW-101 (AW)

Portable aluminium autoclave, six wing-nut type

Seamless mirror-finish aluminium dressing sterilizer supplied with a mild steel stand. Seamless construction keeps the chamber free of bacteria traps.

  • Pressure gauge, safety valve, steam release and vacuum release valves
  • Rubber gasket and inner tripod stand
  • Electric or non-electric heating
Request a quote WhatsApp
ASW-101 (AW) sizes and specifications
Size (inch)CapacityHeating
12″ × 12″21 LElectric / non-electric
12″ × 15″27 LElectric / non-electric
14″ × 15″39 LElectric / non-electric
AECNOMED ASW-101 (SW) Portable stainless steel autoclave, six wing-nut type
ASW-101 (SW)

Portable stainless steel autoclave, six wing-nut type

Seamless-weld stainless steel shell with an aluminium ring and a stainless steel lid, for dressings and instruments.

  • Safety valve plus a double safety valve
  • Steam release and vacuum release valves
  • Rubber gasket, inner tripod and mild steel stand
Request a quote WhatsApp
ASW-101 (SW) sizes and specifications
Size (inch)CapacityHeating
12″ × 12″21 LElectric / non-electric
12″ × 15″27 LElectric / non-electric
12″ × 22″39 LElectric / non-electric

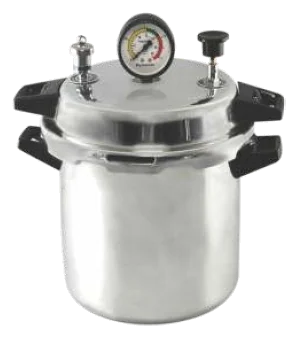

AECNOMED ASW-102 (PCA) Portable aluminium autoclave, pressure-cooker type
ASW-102 (PCA)

Portable aluminium autoclave, pressure-cooker type

Compact cooker-style dressing sterilizer in mirror-finish aluminium with an inner container, tripod and mild steel stand.

  • Pressure gauge, safety valve and double safety valve
  • Steam release and vacuum release valves
  • Electric or non-electric heating
Request a quote WhatsApp
ASW-102 (PCA) sizes and specifications
Size (inch / mm)CapacityHeating
9″ × 11″ (225 × 275)12 LElectric / non-electric
12″ × 12″ (300 × 300)21 LElectric / non-electric
12″ × 22″ (300 × 550)40 LElectric / non-electric

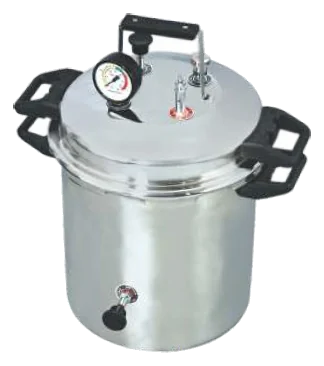

AECNOMED ASW-102 (PCA) SS Stainless steel digital autoclave, pressure-cooker type
ASW-102 (PCA) SS

Stainless steel digital autoclave, pressure-cooker type

The cooker-type autoclave in stainless steel, for clinics that want a harder-wearing body.

  • Pressure gauge, safety valve and double safety valve
  • Steam release and vacuum release valves
  • Inner container, tripod and mild steel stand
Request a quote WhatsApp
ASW-102 (PCA) SS sizes and specifications
Size (inch / mm)CapacityHeating
9″ × 11″ (225 × 275)12 LElectric / non-electric
12″ × 12″ (300 × 300)21 LElectric / non-electric
12″ × 22″ (300 × 550)40 LElectric / non-electric

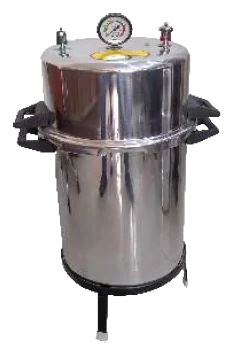

AECNOMED AUC Series Aluminium vertical autoclave, cooker type
AUC Series

Aluminium vertical autoclave, cooker type

Seamless mirror-finish aluminium vertical autoclave, electric or non-electric, in sizes from 7 to 45 litres.

  • Sterilizes at 120–131 °C in 25–30 minutes, or as set
  • 2000 W heating element, 220/240 V AC
  • Pressure gauge, double safety valve, steam and vacuum release valves
Request a quote WhatsApp
AUC Series sizes and specifications
Size (inch)CapacityBody
12″ × 20″40 LAluminium / stainless steel

Other capacities from 7 to 45 litres on request.

22–180 L

Vertical autoclaves

Top-loading autoclaves for operation theatres, nursing homes and laboratories. Choose double wall or triple wall construction, manual valves or microcomputer control with drying.

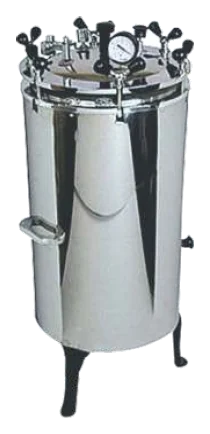

AECNOMED AVWS-101 Vertical autoclave, double wall, nut locking
AVWS-101

Vertical autoclave, double wall, nut locking

Double wall, single chamber autoclave with a stainless steel inner chamber, outer wall and lid ring. Leak-proof, holding 5 to 20 psi.

  • Pressure gauge, safety valve and double safety valve
  • Steam release valve and water drain valve
  • Rubber gasket, inner container and tripod
Request a quote WhatsApp
AVWS-101 sizes and specifications
Size (inch)CapacityHeating
12″ × 22″40 LElectric
14″ × 22″52 LElectric
16″ × 24″75 LElectric
18″ × 24″95 LElectric
18″ × 30″168 LElectric
22″ × 30″180 LElectric
AECNOMED AVWD-101 Vertical autoclave, triple wall, double chamber
AVWD-101

Vertical autoclave, triple wall, double chamber

Triple wall autoclave with stainless steel lid, ring, inner and middle chambers. Leak-proof, holding 5 to 20 psi, and available with a digital controller.

  • Water inlet, water outlet and water level indicator
  • Pressure gauge, safety valve, double safety valve and steam release valve
  • Optional pressure control switch, low-water cut-off, digital timer, digital temperature controller and alarm
Request a quote WhatsApp
AVWD-101 sizes and specifications
Size (inch)CapacityHeating
12″ × 22″40 LElectric
16″ × 27″75 LElectric
16″ × 39″90 LElectric
18″ × 24″98 LElectric
18″ × 30″168 LElectric
22″ × 30″180 LElectric

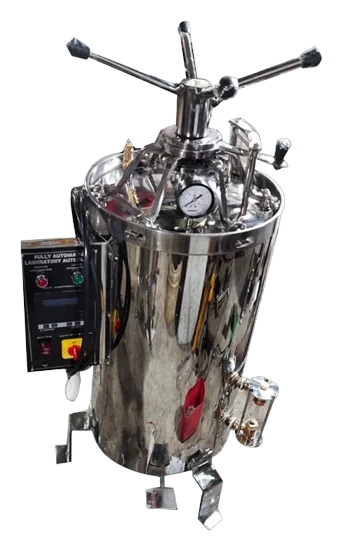

AECNOMED AVLFA-106 Fully automatic vertical laboratory autoclave
AVLFA-106

Fully automatic vertical laboratory autoclave

SS 304 inner and outer chambers with a radial locking lid and neoprene gasket, for critical lab and hospital work where every microorganism must be destroyed.

  • Operates at 15–20 psi, sterilizing up to 134 °C
  • Hydraulically tested to 40 psi; gauge reads 0–30 psi
  • ISI-marked immersion heaters, 220/230 V AC
  • Options: pressure switch, heater cut-off, digital timer and temperature display, thermograph recorder, triple wall for dry sterilization
Request a quote WhatsApp
AVLFA-106 sizes and specifications
ModelInner size (mm)InchesCapacityLoad
ACV-1250 × 45010 × 1822 L2.0 kW
ACV-2300 × 50012 × 2040 L2.0 kW
ACV-3350 × 55014 × 2250 L3.0 kW
ACV-4450 × 60018 × 2498 L4.0 kW
ACV-5550 × 75022 × 30152 L6.0 kW

Inner dimensions are diameter × height. Basket, lid and inner tank in stainless steel; paddle-operated lid lifting.

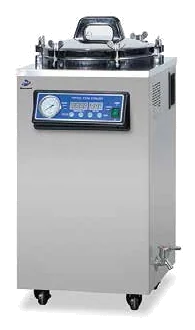

AECNOMED STV Series Vertical steam sterilizer, microcomputer controlled
STV Series

Vertical steam sterilizer, microcomputer controlled

Class N stainless steel sterilizer with bolt-lock lid, self-expanding seal and fully automatic protection.

  • Set any temperature from 50 to 134 °C (±1 °C) at 0.22 MPa
  • Sterilization timer 4–120 minutes
  • Over-temperature, over-pressure, low-water and dry-burn protection
  • Buzzer and auto-stop at the end of the cycle, automatic steam exhaust; external printer optional
Request a quote WhatsApp
STV Series sizes and specifications
ModelVolumePowerChamber (mm)Outer size (mm)Gross / net
STV-30I35 L3.5 kWØ300 × 500400 × 400 × 86058 / 41 kg
STV-50I50 L3.5 kWØ350 × 525480 × 480 × 96075 / 53 kg
STV-75I75 L4.5 kWØ400 × 625525 × 567 × 102082 / 61 kg
STV-100I100 L4.5 kWØ450 × 650555 × 555 × 1080103 / 78 kg
STV-120I120 L4.5 kWØ450 × 760555 × 599 × 1200108 / 82 kg
STV-150I150 L6.0 kWØ500 × 780605 × 649 × 1210116 / 90 kg

All models run on AC 220 V, 50 Hz. Stainless steel bucket or basket included.

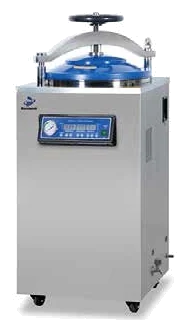

AECNOMED STV-III Series Vertical steam sterilizer with drying, hand-wheel lid
STV-III Series

Vertical steam sterilizer with drying, hand-wheel lid

Quick-opening hand-wheel lid, drying function and microcomputer control, with automatic cold-air discharge and steam exhaust.

  • Set any temperature from 50 to 134 °C (±1 °C) at 0.22 MPa
  • Sterilization timer 4–120 minutes; drying timer 0–240 minutes
  • Over-temperature, over-pressure, low-water and dry-burn protection
  • External printer optional
Request a quote WhatsApp
STV-III Series sizes and specifications
ModelVolumePowerChamber (mm)Outer size (mm)Gross / net
STV-35III35 L3.5 kWØ350 × 400498 × 498 × 94079 / 58 kg
STV-50III50 L3.5 kWØ350 × 525498 × 498 × 1110106 / 80 kg
STV-75III75 L4.5 kWØ400 × 625570 × 570 × 1185120 / 90 kg
STV-100III100 L4.5 kWØ450 × 625588 × 588 × 1255133 / 106 kg

All models run on AC 220 V, 50 Hz.

75–925 L

Horizontal high-pressure sterilizers

Triple wall, steam-jacketed sterilizers for hospital CSSDs and bio-medical waste treatment, mounted on sturdy SS or MS stands with radial locking doors.

AECNOMED AHCS-104 Horizontal cylindrical high-pressure sterilizer
AHCS-104

Horizontal cylindrical high-pressure sterilizer

Triple wall, double chamber autoclave with all walls and lid in SS 304, radial locking and a strong tubular SS or MS stand.

  • Separate multi-port valves for steam injection and steam release
  • Automatic pressure safety valve and automatic vacuum breaker
  • Digital temperature controller and timer, audio alarm, moisture trap
  • Options: cylindrical or rectangular chamber, steam jacket and storage system
Request a quote WhatsApp
AHCS-104 sizes and specifications
Size (mm)InchesCapacity
400 × 60016″ × 24″75 L
400 × 90016″ × 36″100 L
400 × 110016″ × 44″150 L
500 × 90020″ × 36″175 L
500 × 120020″ × 48″235 L
600 × 90024″ × 36″275 L
600 × 120024″ × 48″300 L

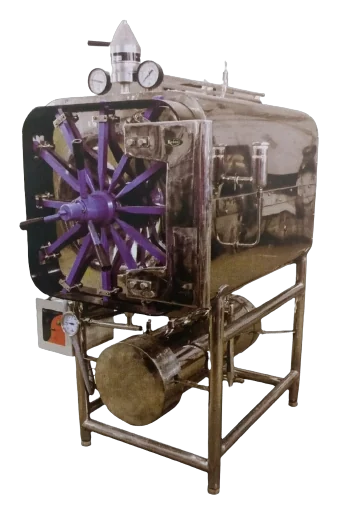

AECNOMED AHRS-105 Horizontal rectangular high-pressure sterilizer
AHRS-105

Horizontal rectangular high-pressure sterilizer

Designed for regulated bio-medical waste and hospital loads, working on downward displacement of air with saturated steam.

  • Triple wall, non-magnetic SS 304/316, argon-arc welded; separate SS boiler
  • Sterilizes up to 134 °C at 15–22 psi; hydraulically tested to 40 psi
  • Radial locking door that cannot be opened under pressure
  • Low-water cut-off, automatic vacuum breaker, pressure control switch and digital temperature indicator
Request a quote WhatsApp
AHRS-105 sizes and specifications
Working chamber (mm)Volume
600 × 600 × 900320 L
600 × 600 × 1200430 L
600 × 600 × 1500510 L
900 × 900 × 1500925 L

Double door version and vacuum steam pulsing with a heavy-duty vacuum pump available on request. Price as per size and specification.

75–810 L

Fully automatic Class B sterilizers

Fully automatic pre-vacuum steam sterilizers with mirror-polished ANSI 316L chambers, a liquid-ring vacuum pump and a 4-inch colour touch screen. A built-in printer records every phase with a pass or fail result.

Cycle library on all Class B models

Class B sterilizer cycles
CycleTemperatureHold timeUse for
Porous and textiles134 °C5 minTextiles, porous materials, empty glassware and other heat-resistant items
Rubber121 °C20 minGloves, catheters and rubber materials
Instruments134 °C5 minWrapped surgical instruments
Prion134 °C18 minLoads needing extended prion inactivation
Flash (optional)134 °C3 minUnwrapped instruments
Bowie & Dick test——Steam penetration test
Vacuum leak test—10 minChecks chamber tightness

Open cycles can be programmed in addition to the presets.

AECNOMED AHCAFA-105B Fully automatic horizontal cylindrical sterilizer, Class B
AHCAFA-105B

Fully automatic horizontal cylindrical sterilizer, Class B

Single or double hinged door with radial locking, mirror-polished ANSI 316L chamber rated −1 to 2.5 bar and up to 134 °C.

  • Liquid-ring vacuum pump on anti-vibration mounts for pre-vacuum and drying
  • 4-inch colour touch screen with cycle library, alarms and maintenance schedule
  • Printer records every phase, batch, operator and F0 value with pass or fail
  • Inflatable silicone door gasket; door self-locks under pressure
Request a quote WhatsApp
AHCAFA-105B sizes and specifications
ModelChamber (mm)VolumeStandard loadHigh-speed load
AHCAFA 1624Ø400 × 60075 L9 kW12 kW
AHCAFA 1636Ø400 × 900120 L9 kW12 kW
AHCAFA 1650Ø400 × 1100150 L12 kW18 kW
AHCAFA 2036Ø500 × 900175 L12 kW18 kW
AHCAFA 2050Ø500 × 1200250 L18 kW24 kW
AHCAFA 2436Ø600 × 900275 L18 kW36 kW
AHCAFA 2448Ø600 × 1200300 L18 kW36 kW

Available in single door (SD) and double door (DD) versions.

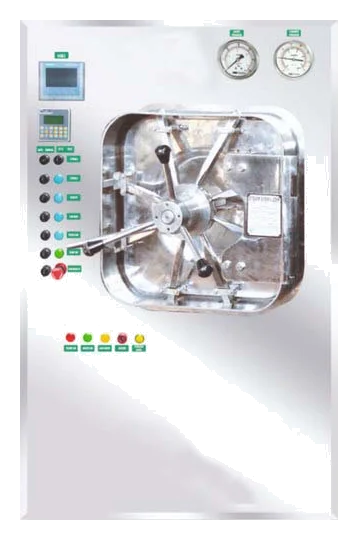

AECNOMED AHRAFA-106B Fully automatic horizontal rectangular sterilizer, Class B, hinged door
AHRAFA-106B

Fully automatic horizontal rectangular sterilizer, Class B, hinged door

Rectangular 316L chamber with single or double hinged radial-locking doors, for CSSDs and large hospitals.

  • Steam-jacketed triple wall construction in SS 304/304L/316/316L, up to 12 mm thick
  • Chamber hydraulically tested to 2.5× and jacket to 1.5× working pressure
  • Digital pressure, temperature and vacuum gauges; audio-visual alarms
  • Same 4-inch touch screen, cycle library and printed records as all Class B models
Request a quote WhatsApp
AHRAFA-106B sizes and specifications
Chamber W × H × D (mm)VolumeFully electric load
600 × 600 × 900320 L18 kW
600 × 600 × 1200432 L18 kW
600 × 900 × 1200510 L18 kW
600 × 900 × 1500648 L36 kW
900 × 900 × 1500810 L36 kW

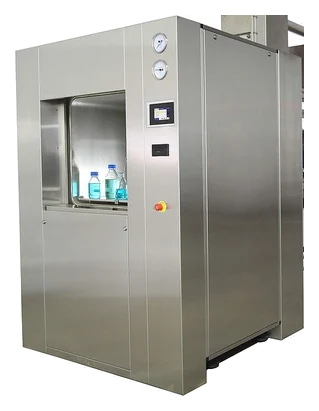

AECNOMED AHRSFA-107B Automatic horizontal rectangular sterilizer, Class B, sliding door
AHRSFA-107B

Automatic horizontal rectangular sterilizer, Class B, sliding door

Sliding single or double doors save floor space and suit pass-through CSSD layouts between dirty and clean zones.

  • Mirror-polished ANSI 316L chamber, −1 to 2.5 bar, up to 134 °C
  • Liquid-ring vacuum pump with steam and vacuum pulsing
  • Low-water cut-off, vacuum breaker and door self-lock under pressure
  • Printed cycle report with pass or fail certification
Request a quote WhatsApp
AHRSFA-107B sizes and specifications
Chamber W × H × D (mm)VolumeFully electric load
600 × 600 × 900320 L18 kW
600 × 600 × 1200432 L18 kW
600 × 900 × 1200510 L18 kW
600 × 900 × 1500648 L36 kW
900 × 900 × 1500810 L36 kW
16–22 L

Dental autoclaves

Compact table-top autoclaves for dental, implant and skin clinics, including a Class B model with a built-in printer for NABH record keeping.

AECNOMED ATTA-108B Dental Elite Enclave Class B autoclave
ATTA-108B

Dental Elite Enclave Class B autoclave

Fully automatic table-top Class B autoclave with an inbuilt thermal printer for NABH record keeping.

  • One universal cycle at 121 °C / 18 psi for wrapped, unwrapped, hollow, solid and porous loads, cotton swabs included
  • Inbuilt vacuum pump: 6 vacuum pulses with sterilization and drying; self vacuum test every cycle
  • ARM microcontroller, 4-line display and 6 error codes for quick diagnosis
  • Printer logs date, start time, temperature, sequence and total time; your clinic name can be printed on the receipt
Request a quote WhatsApp
ATTA-108B sizes and specifications
Specification18 L22 L
Width470 mm470 mm
Height400 mm400 mm
Depth585 mm640 mm
Power1.4 kW2 kW
Gross weight30 kg35 kg
Inner chamberØ255 × 315 mmØ255 × 432 mm
Trays3 SS trays, 215 × 280 mm3 SS trays, 215 × 280 mm

Also available in a 16 litre capacity.

AECNOMED TTA16 / TTA21 Front-loading automatic dental autoclave
TTA16 / TTA21

Front-loading automatic dental autoclave

Programmable front-load autoclave with a drier and a choice of two working temperatures, for busy clinics.

  • 121 °C or 134 °C cycles at 1.2 bar or 2.1 bar
  • Temperature deviation under 0.5 °C
  • Italian Sirai solenoid valve for steady steam control
  • Easy-clean gaskets that are simple to replace
Request a quote WhatsApp
TTA16 / TTA21 sizes and specifications
ModelCapacity
TTA1616 L
TTA2121 L
47–240 L

Low-temperature sterilizers

For endoscopes, plastics, optics and electronics that cannot take steam heat. Choose ethylene oxide (ETO) gas or hydrogen peroxide plasma.

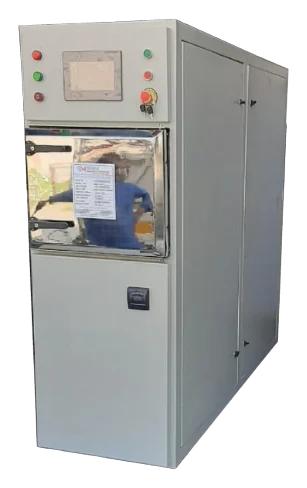

AECNOMED AESFA-109B ETO (ethylene oxide) gas sterilizer
AESFA-109B

ETO (ethylene oxide) gas sterilizer

For medical and pharmaceutical products that cannot take high-temperature steam or would be damaged by radiation.

  • Argon-welded SS 316 non-magnetic chamber with surface heaters and vacuum pulsing
  • PLC automation with LCD HMI, password protection and SCADA connectivity
  • Stores 6–12 months of cycle records for CE / EN 550 documentation
  • Pressure and vacuum tested at 1.5× working pressure; one-year guarantee on listed components
Request a quote WhatsApp
AESFA-109B sizes and specifications
ModelChamber H × W × D (inch)Capacity
AESFA-112 × 12 × 2450 L
AESFA-212 × 12 × 3680 L
AESFA-412 × 12 × 48120 L
AESFA-515 × 18 × 36135 L
AESFA-818 × 18 × 42240 L

Warm cycle at 55 °C takes about 7–8 hours; cold cycle at 37 °C about 8–10 hours. All functions automatic; door closes manually.

AECNOMED APSFA-110B Hydrogen peroxide plasma sterilizer
APSFA-110B

Hydrogen peroxide plasma sterilizer

Low-temperature sterilization at 56 °C or less for endoscopes, lumens, optics and electronics, with cycles of 24 to 60 minutes.

  • Dedicated cycles for non-lumen, lumen and flexible loads
  • Hydrogen peroxide breaks down into water and oxygen at the end of the cycle
  • Double-door interlock, door lock during cycles and obstacle detection on closing
  • Works with rapid-readout biological indicators to verify each cycle
Request a quote WhatsApp
APSFA-110B sizes and specifications
SpecificationAECNOMED Plazma
Overall size1100 × 850 × 1700 mm (L × W × H)
Chamber size750 × 450 × 400 mm
Chamber volume140 L
Chamber materialMedical grade aluminium
DoorAutomatic vertical sliding, auto-locking
Electrical220 V AC, 5 kW
Control panel7-inch touch screen
Cycle temperature50–55 °C
PrinterThermal printer
Weight400 kg

Also available with 47, 110 and 162 litre chambers. Suitable loads include rigid and flexible endoscopes, electrocautery instruments, fibre-optic cables, laser handpieces, ophthalmic lenses, ultrasound probes and power drills.

Electric & non-electric

Instrument sterilizers & cleaning

Stainless steel boiling sterilizers, soaking trays and ultrasonic baths for cleaning and disinfecting instruments, bowls and utensils.

AECNOMED AISB Series Electric instrument boiler sterilizer, SS jointed
AISB Series

Electric instrument boiler sterilizer, SS jointed

Stainless steel boiling sterilizers in eleven sizes, with an optional thermostat and tray lifting.

  • Electric heating
  • Optional thermostat
  • Optional tray lifting
Request a quote WhatsApp
AISB Series sizes and specifications
CodeSize L × B × H (inch)
AISB-28 × 5 × 3
AISB-310 × 5 × 3
AISB-412 × 6 × 4
AISB-514 × 6 × 4
AISB-616 × 6 × 4
AISB-714 × 8 × 6
AISB-818 × 8 × 6
AISB-920 × 8 × 6
AISB-1024 × 8 × 6
AISB-1124 × 12 × 6
AISB-1224 × 12 × 12
AECNOMED ASW-850 Series Electric instrument sterilizer, jointed, with tray lifting and thermostat
ASW-850 Series

Electric instrument sterilizer, jointed, with tray lifting and thermostat

Jointed stainless steel instrument sterilizer with a lever-operated tray lift and thermostat control.

  • Tray lifting lever keeps hands clear of boiling water
  • Thermostat control
  • Ten sizes up to 600 × 300 × 300 mm
Request a quote WhatsApp
ASW-850 Series sizes and specifications
ModelSize L × B × H (mm)
ASW-850300 × 150 × 150
ASW-851350 × 150 × 150
ASW-852400 × 150 × 150
ASW-853400 × 200 × 150
ASW-854430 × 200 × 200
ASW-855450 × 200 × 200
ASW-856500 × 200 × 200
ASW-857600 × 200 × 200
ASW-858600 × 200 × 150
ASW-859600 × 300 × 300
AECNOMED ASW-861 Series Non-electric instrument sterilizer, jointed
ASW-861 Series

Non-electric instrument sterilizer, jointed

Stainless steel sterilizer for use on an external heat source, in thirteen sizes.

  • No electrical connection needed
  • Side handles and fitted lid
  • Sizes from 200 × 100 × 60 mm to 600 × 300 × 300 mm
Request a quote WhatsApp
ASW-861 Series sizes and specifications
ModelSize L × B × H (mm)
ASW-861200 × 100 × 60
ASW-862250 × 127 × 75
ASW-863250 × 127 × 75
ASW-864300 × 150 × 150
ASW-865350 × 150 × 150
ASW-866400 × 150 × 150
ASW-867400 × 200 × 150
ASW-868430 × 200 × 200
ASW-869450 × 200 × 200
ASW-870500 × 200 × 200
ASW-871600 × 200 × 250
ASW-872600 × 300 × 150
ASW-873600 × 300 × 300

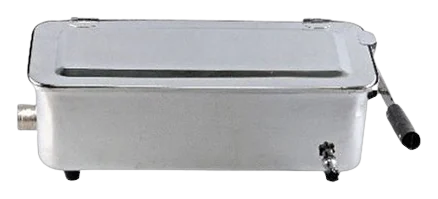

AECNOMED ASW-878 Series Electric instrument sterilizer, jointless, with tray lifting
ASW-878 Series

Electric instrument sterilizer, jointless, with tray lifting

Seamless, jointless stainless steel body that is easier to clean, with a lever-operated tray lift.

  • Jointless / seamless construction
  • Tray lifting lever
  • Drain tap
Request a quote WhatsApp
ASW-878 Series sizes and specifications
ModelSize L × B × H (mm)
ASW-878300 × 150 × 150
ASW-879430 × 200 × 200
ASW-880500 × 200 × 200

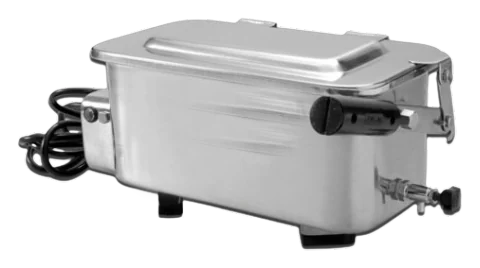

AECNOMED ASW-881 Series Electric instrument sterilizer, jointless, with tray lifting and thermostat
ASW-881 Series

Electric instrument sterilizer, jointless, with tray lifting and thermostat

The jointless sterilizer with added thermostat control for steady boiling temperature.

  • Jointless / seamless construction
  • Thermostat control
  • Tray lifting lever
Request a quote WhatsApp
ASW-881 Series sizes and specifications
ModelSize L × B × H (mm)
ASW-881300 × 150 × 150
ASW-882430 × 200 × 200
ASW-883500 × 200 × 200

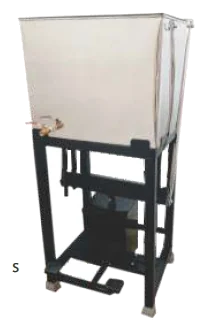

AECNOMED ASW-874 Series Stainless steel bowl and utensil sterilizer
ASW-874 Series

Stainless steel bowl and utensil sterilizer

Floor-standing stainless steel sterilizer for bowls, kidney trays and utensils.

  • Stainless steel tank on a sturdy stand
  • Drain tap
  • Four sizes up to 24″ × 24″ × 20″
Request a quote WhatsApp
ASW-874 Series sizes and specifications
ModelSize L × B × H (inch)
ASW-87420 × 16 × 16
ASW-87520 × 20 × 20
ASW-87624 × 20 × 20
ASW-87724 × 24 × 20

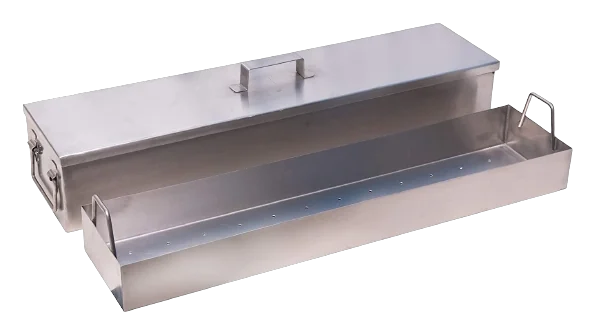

AECNOMED ASW-230 Series Stainless steel Cidex tray
ASW-230 Series

Stainless steel Cidex tray

Lidded stainless steel soaking tray with a lift-out inner tray, for glutaraldehyde disinfection of scopes and instruments.

  • Lift-out inner tray with handles
  • Close-fitting lid with carry handle
  • Four lengths from 14″ to 30″
Request a quote WhatsApp
ASW-230 Series sizes and specifications
ModelSize L × B × H (inch)
ASW-23014 × 5 × 5
ASW-23123 × 5 × 5
ASW-23227 × 5 × 5
ASW-23330 × 6 × 5
AECNOMED AVSC-101B Ultrasonic cleaner and bath
AVSC-101B

Ultrasonic cleaner and bath

Stainless steel ultrasonic bath for pre-cleaning instruments before sterilization. Transducers convert electrical energy into ultrasound at 20–40 kHz.

  • Ultrasound frequency 20–40 kHz
  • Stainless steel tank and body
  • Sizes on request
Fogging & sharps

Infection control equipment

Equipment for fogging and fumigating operation theatres and wards, and for safe disposal of needles and syringes.

AECNOMED AFM-103 ULV micro fogger
AFM-103

ULV micro fogger

Portable 304 stainless steel fogger for OT and ward disinfection that sprays oil- or water-based chemicals.

  • Droplet size adjustable from 5 to 30 micron
  • Treats 2,000–4,000 cubic feet per minute; up to 150 ml per minute output
  • Chemical level indicator and pre-fitted brass flow control valve
  • Easy to recalibrate when you change liquids
Request a quote WhatsApp
AFM-103 sizes and specifications
SpecificationDetail
Body and tank304 grade stainless steel
Tank capacity4 L
Blower motorOver 26,000 rpm
NozzleCounter-rotating vortex nozzle
RangeVisible fog, 20–30 ft (7.5 m)
Input230 V, 50 Hz, single phase AC
Dimensions33 × 41 × 23.5 cm (L × H × dia)
Net weight6.5 kg approx.

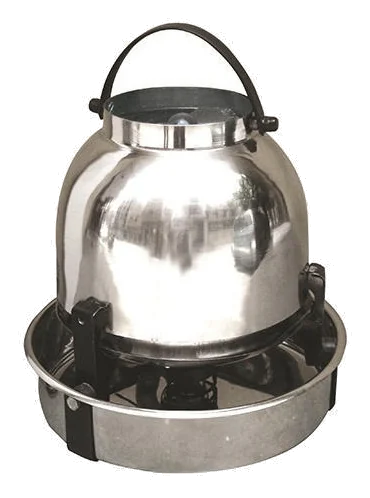

AECNOMED APF-103 Multipurpose portable fumigator
APF-103

Multipurpose portable fumigator

Aerosol fumigator that works as a disinfector, humidifier, insect repellent sprayer and atomizer. No heat or catalyst needed, and simple enough for any ward attendant to run.

  • Use with formalin, Dettol, Savlon, phenol and similar disinfectants
  • Routine disinfection: 30 ml of 40% formalin with 90 ml water per 1,000 cubic feet
  • Intensive disinfection: 90 ml of 40% formalin with 90 ml water per 1,000 cubic feet
  • Best room temperature for fumigation: 24–38 °C
Request a quote WhatsApp
APF-103 sizes and specifications
SpecificationDetail
Capacity1.5 L, 3 L or 5 L
Power220 V, 50 Hz, 160 W
Output1.5–15 L per hour
Motor speed2,960 rpm

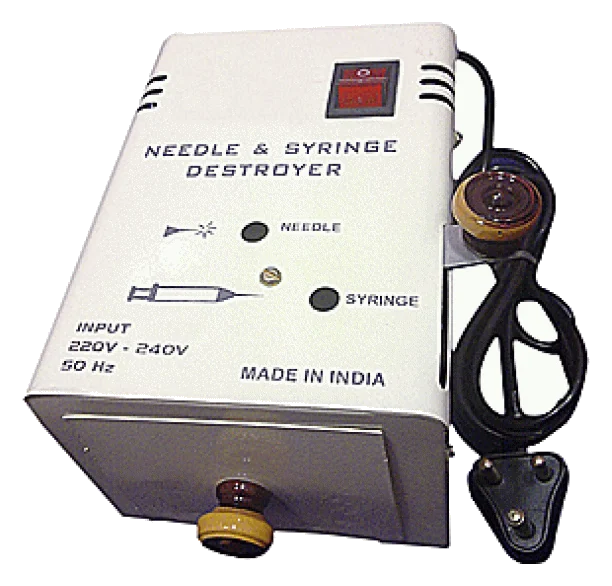

AECNOMED Electric Electric needle and syringe destroyer
Electric

Electric needle and syringe destroyer

3-in-1 unit that burns the needle and cuts the syringe nozzle, with a manual needle cutter for use during power cuts.

  • Sharp steel blade for syringe nozzles
  • Powder-coated metal body for long life
  • 220–240 V, 50 Hz
AECNOMED Manual Manual needle and syringe destroyer
Manual

Manual needle and syringe destroyer

Stainless steel adjustable blade that cuts needles safely and hygienically, with no power and no maintenance cost.

  • No electricity needed
  • Adjustable stainless steel blade
  • Durable and easy to use

Not sure which model fits your load?

Tell us what you sterilize, how much each day and the space you have. We will recommend a model and send a quotation.
